Stretch wrapping
Using a wrapper, products can be packaged free of moisture, dirt and dust. The load is stacked on a pallet using, for example, a robot. Stretch film is then wrapped around it. If necessary, a top sheet can be placed to protect the load against rain and moisture.
Suitable for many product applications.
Packaging with Willems stretch wrapper machine has a number of advantages:
- Stable and representative pallet packaging.
- Dust and rain proof pallet packaging: suitable for outdoor storage.
- Variable stretch ensures low film consumption with minimal environmental impact.
- Easy in use

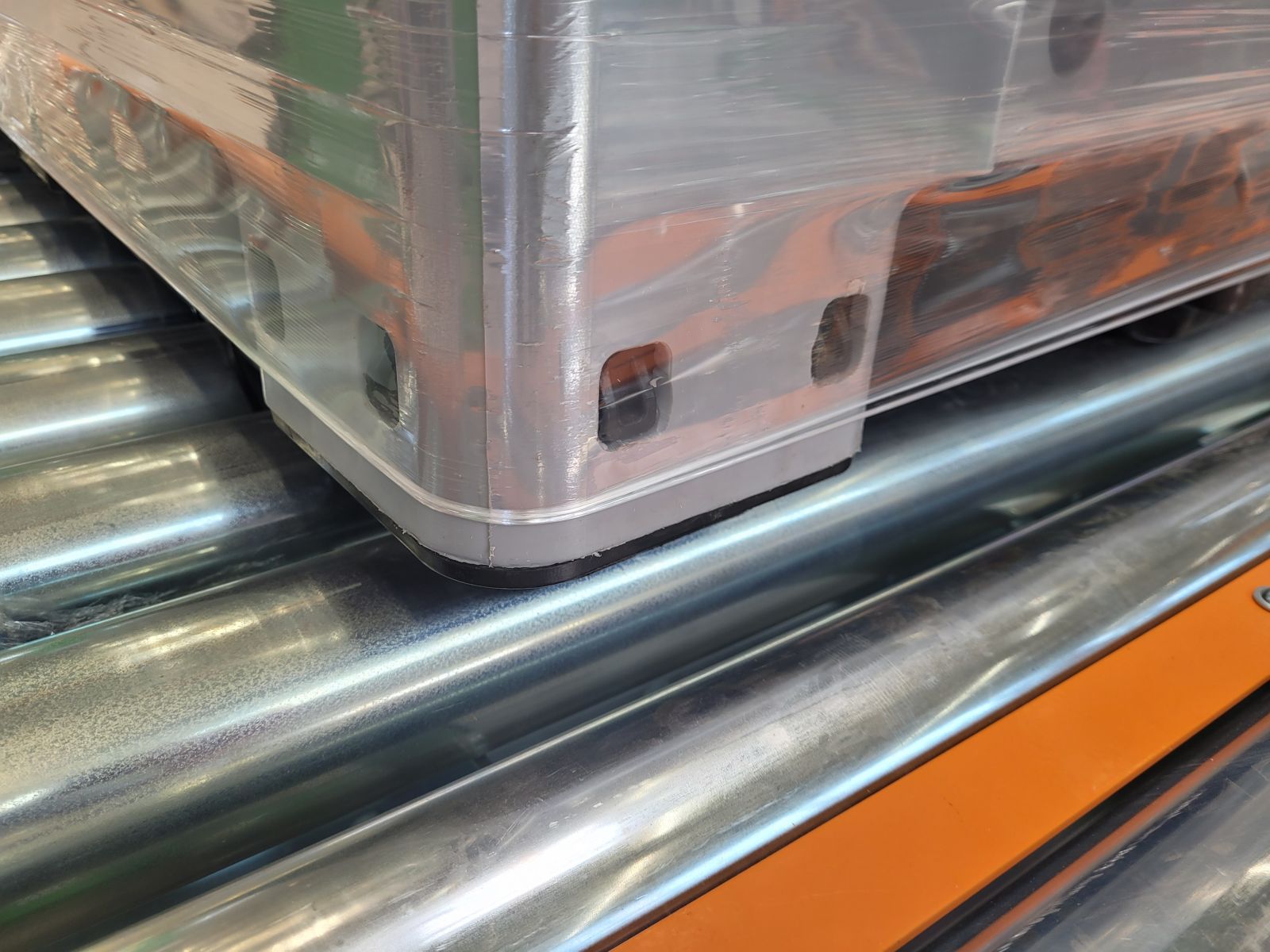

- The foil can be pulled around the pallet. Laminated layers of foil ensure a stable attachment between pallet and load.
- Possibility to process different pallet sizes together.
- Possibility to seal foil strand with integrated sealing bar.
- Small footprint due to modular construction.
- All moving parts are accessible (easy maintenance and easy inspection).
- Possible to ''stack and wrap''. During stacking with a robot, wrapping can be done per layer. This way, even the most unstable load can be fixed.

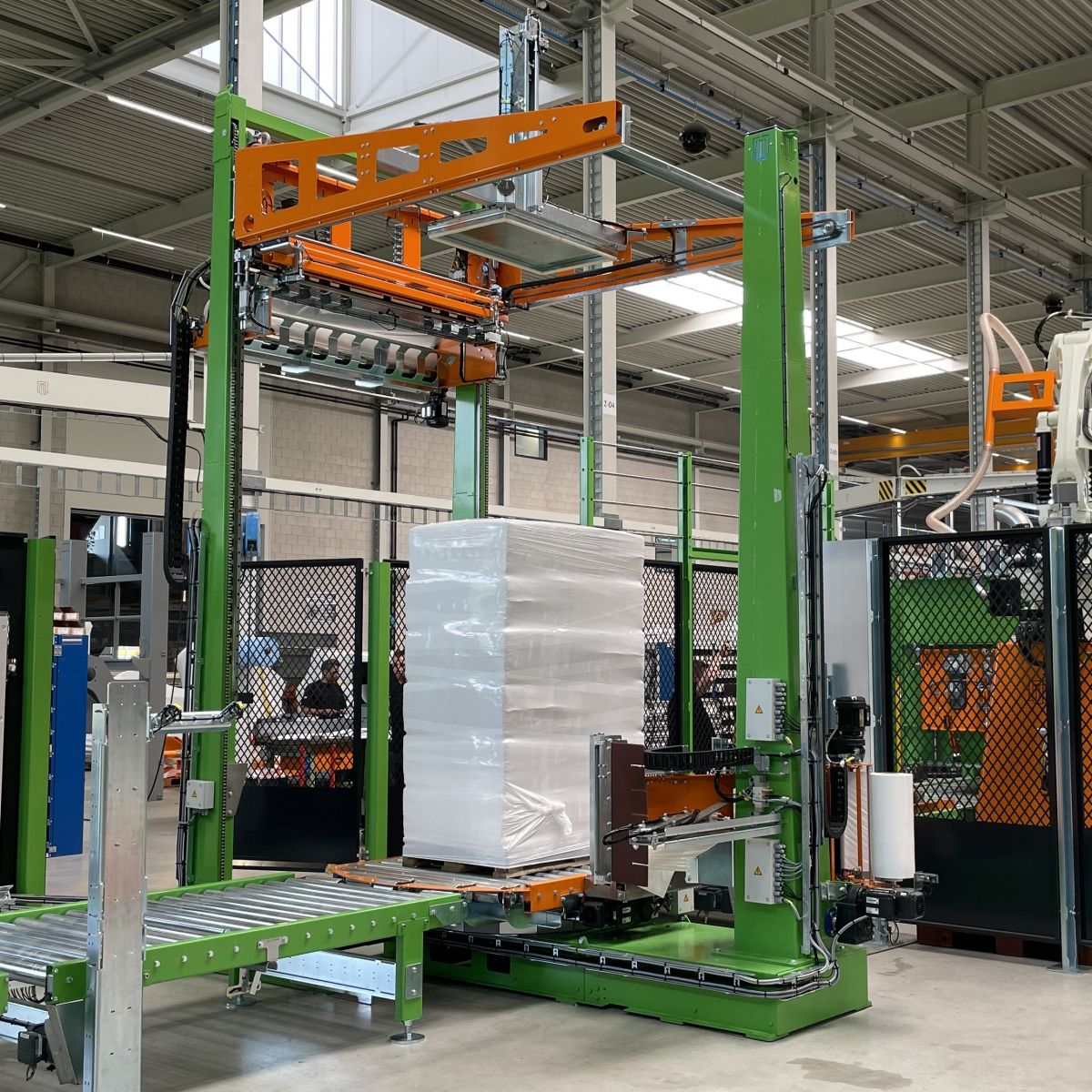

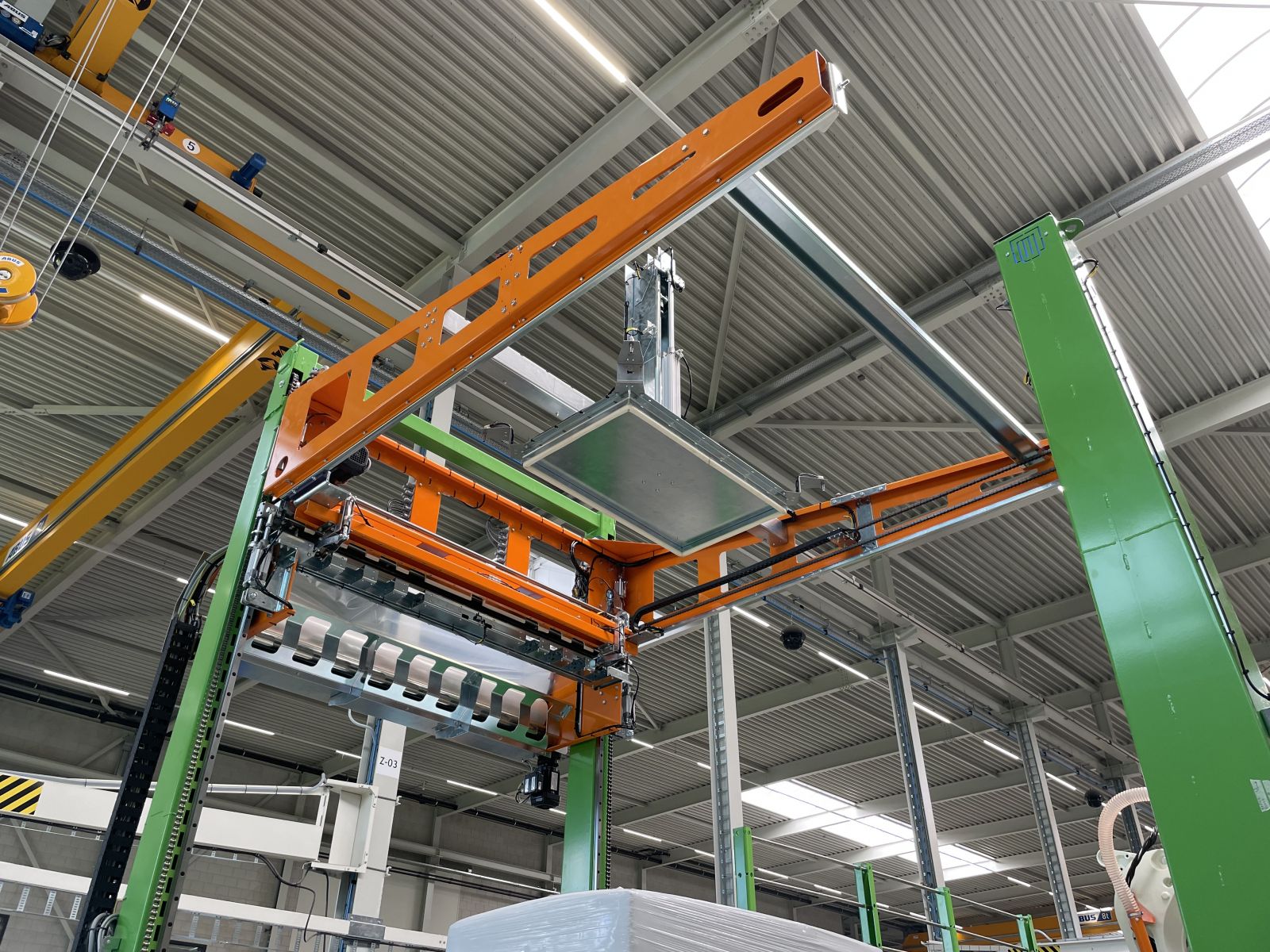

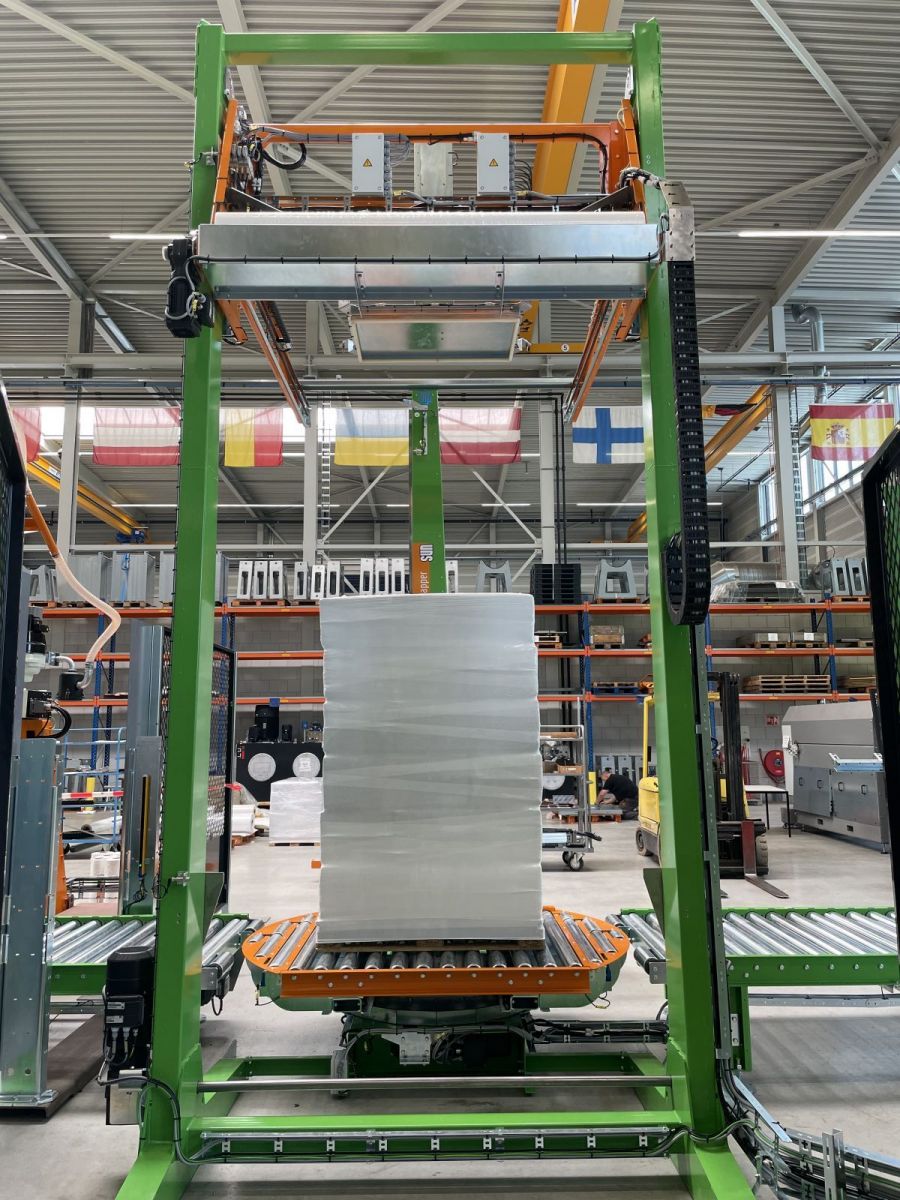

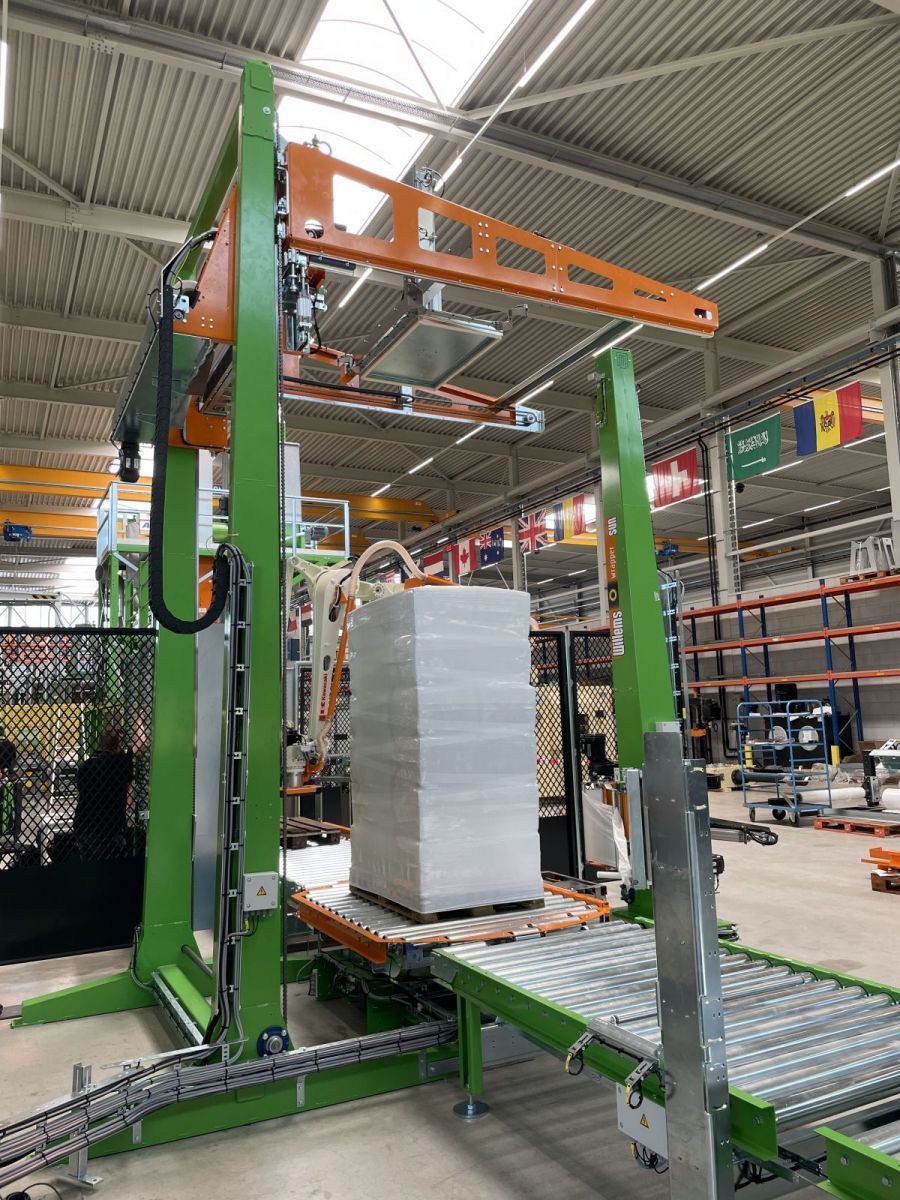

Turntable wrapper model Sun
Technical specifications:
- Pallet dimensions: 1.200 x 800mm (Euro) - 1.600 x 1.200mm (Industry)
- Load height: min. 500mm - max. 3.100mm (incl. pallet)
- Maximum cargo dimensions: 1.600 x 1.200mm
- Maximum weight: 2.000 kg
- Capacity: up to 55 pallets per hour (depending on load specifications and top sheet use)
- Roller conveyor height: 500mm-600mm (standard 600mm)
Willems Baling Equipment Wrapper Sun
This video shows a Wrapper Sun in action.
